Licerion®

With over two decades of research and development, Sion Power has created technology that significantly enhances the energy and cycle life of rechargeable lithium metal batteries.

Inquire

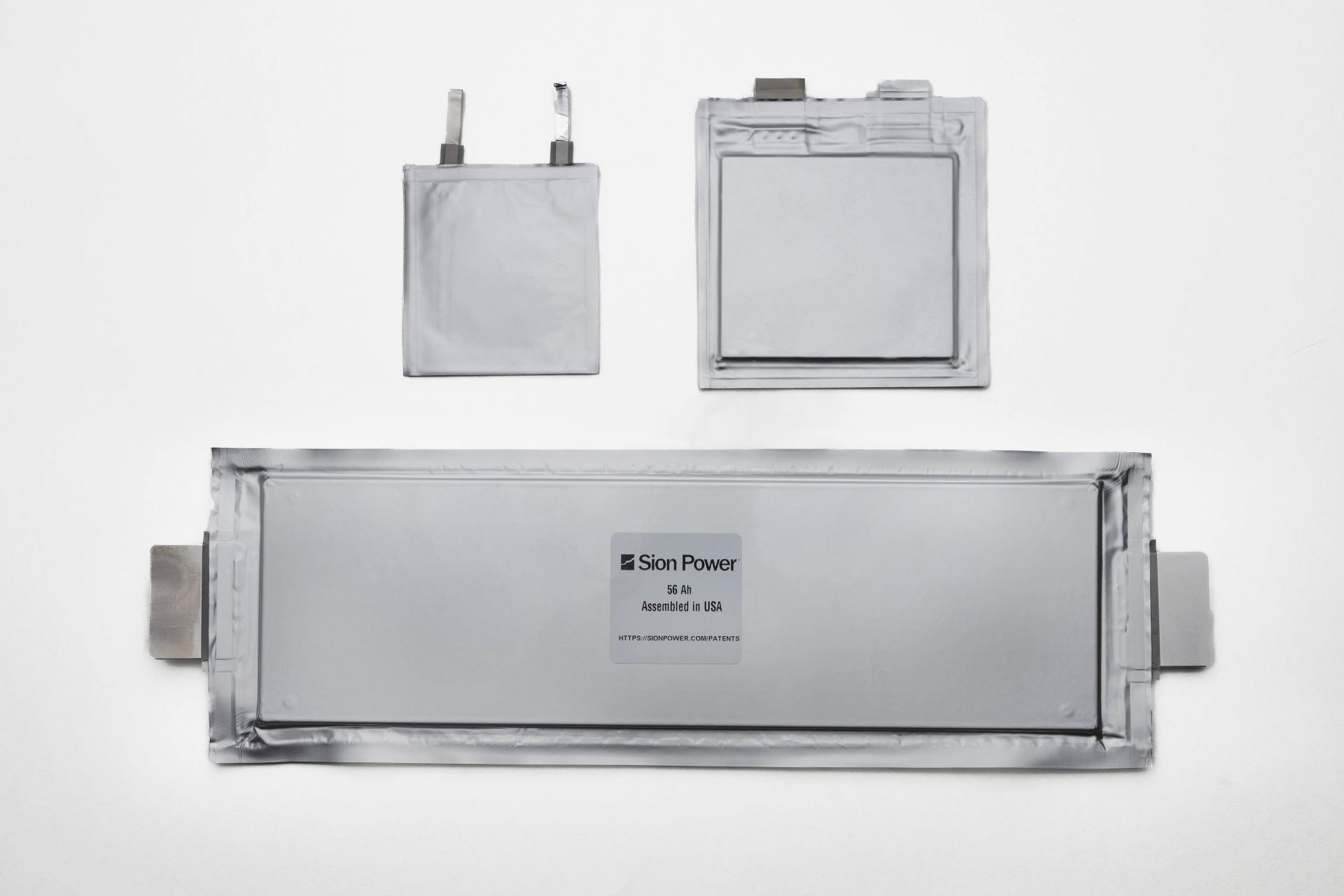

Licerion Cell

Envision a world without constraints.

Demand for a lighter, higher-energy battery has been the driving force behind years of research and development by the team at Sion Power. The goal was to push the boundaries of energy storage technology to create the Licerion® rechargeable battery. Licerion batteries are setting a new standard for lithium batteries by offering the highest combination of energy density and specific energy available. Find out how Licerion batteries can give your application the freedom to go further.

High Performance

Big energy, small package

Big energy, small package

Licerion® rechargeable batteries offer the unmanned vehicle markets key performance advantages over other technologies. Lighter and smaller than a lithium-ion cell yet with increased energy storage, Licerion batteries can enable longer missions and increased payloads. Experience 500 Wh/kg and 1000 Wh/L with Licerion rechargeable batteries.

Proprietary Technology

Proprietary anode and electrolyte coupled with a high-energy cathode

Proprietary anode and electrolyte coupled with a high-energy cathode

Produced in-house, Sion Power has developed a patented Protected Lithium Anode (PLA), a key component which enables Licerion® batteries to store energy at levels unachievable by other battery technologies. Incorporating thin, chemically stable ceramic barriers, the Licerion PLA reduces parasitic reactions, minimizing weight while maximizing energy, cycle life, and safety. Additives in Sion Power’s proprietary electrolyte system further improves safety and extend cycle life. The result is a battery that offers the highest combination of energy density and specific energy available.

Sion Lab

Application Diversity

Unmanned vehicles, propulsion systems, and stationary power

Unmanned vehicles, propulsion systems, and stationary power

Ideally suited for many types of applications, discover why Licerion® is right for you. Standard battery packs to include:

  • 2 kWh, 48 V battery pack

  • 4 kWh, 48 V battery pack

  • 26.5 kWh, 336 V battery pack

Custom battery packs are also available.

Safety

Internal and third-party testing validation

Internal and third-party testing validation

Sion Power has performed safety tests on cells and batteries which include nail penetration, external short circuit, overcharge, and heat application tests. Additional tests are performed based on customer requests.

Licerion® will be tested to meet or exceed requirements for IEC 62133 2nd Edition, UL 2054 2nd Edition, and UN/DOT 38.3 5th Edition, Amendment 1.

Batter Outline

Dimensions

100 x 100 x 10 mm

Material

Proprietary ultra-thin lithium metal anode
Nickel-rich cathode

Weight

154 g for 20 Ahr cell

Energy

500 Wh/kg and 1000 Wh/L

Typical Charge Current

6.5 A (C/3 Rate)

Maximum Continuous Discharge

60 A (3C Rate)

Pulse Discharge Rate

Up to 100 A (5C Rate)

Preliminary specifications projected from prototype designs. Information subject to change without notice. Request a specification sheet using contact form at page bottom.
